Smart Handling, Seamless Performance – Precision at Your Command
ULTI-STOP Features
The ULTI-STOP puts precision and ease at your fingertips—no tools required. Ergonomic hand wheels, levers, and knobs let you make quick, accurate adjustments on the fly.

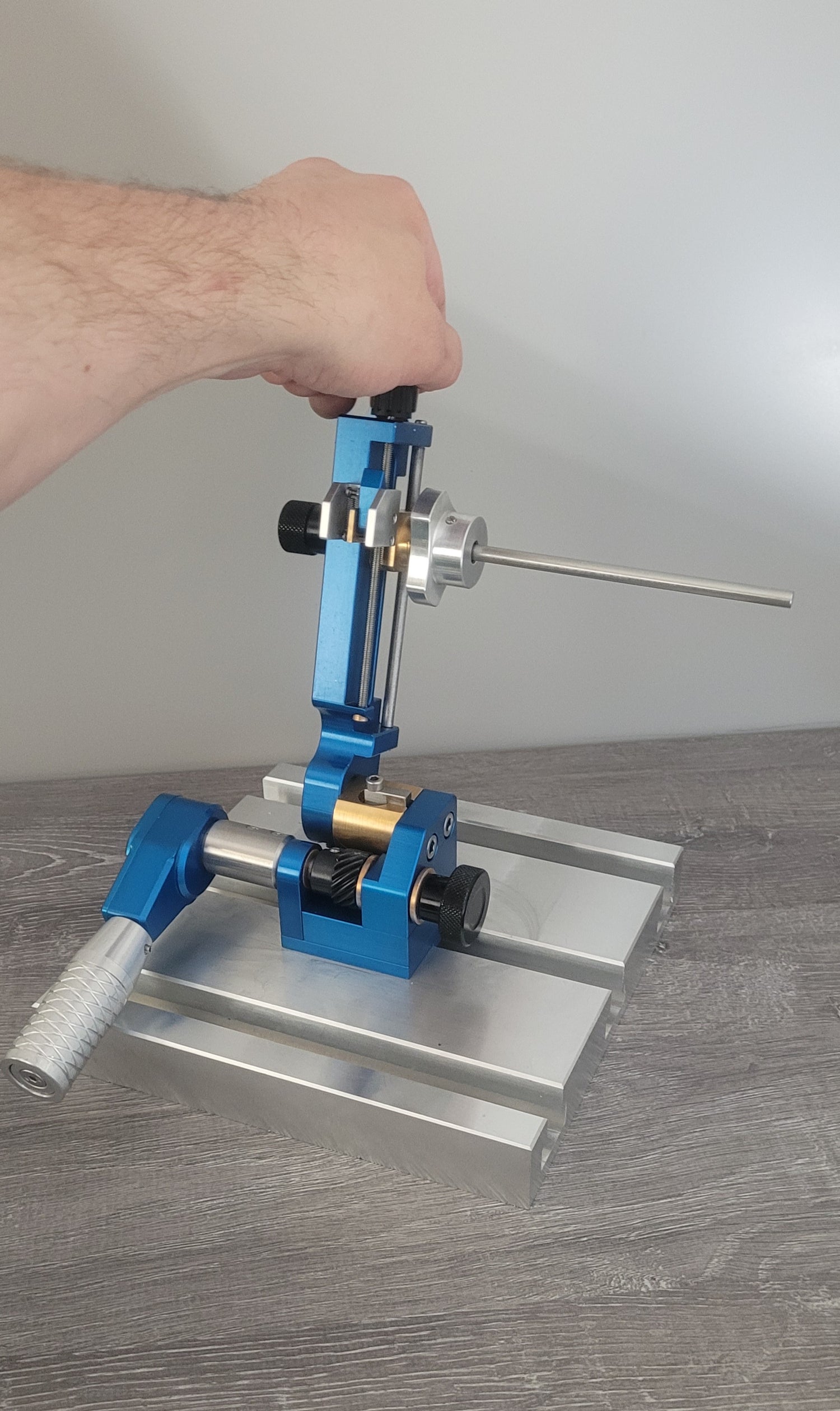

Lock the main arm instantly with the star-shaped knob and mechanical brake system: a simple twist secures it in place, while a counter-clockwise turn releases it for smooth repositioning. The carriage assembly, which holds the end-stop rod, slides effortlessly along the main arm—just loosen the rear thumb wheel, move to your desired spot, and lock it down.
Fine-tuning is just as intuitive. The end-stop rod glides through a dedicated hand wheel for precise linear movement. Loosen, adjust, and tighten for exact placement—fast, reliable, and repeatable.
Whether you’re setting up for consistent production runs or making quick changes between jobs, the ULTI-STOP delivers total control and maximum efficiency with minimal effort.

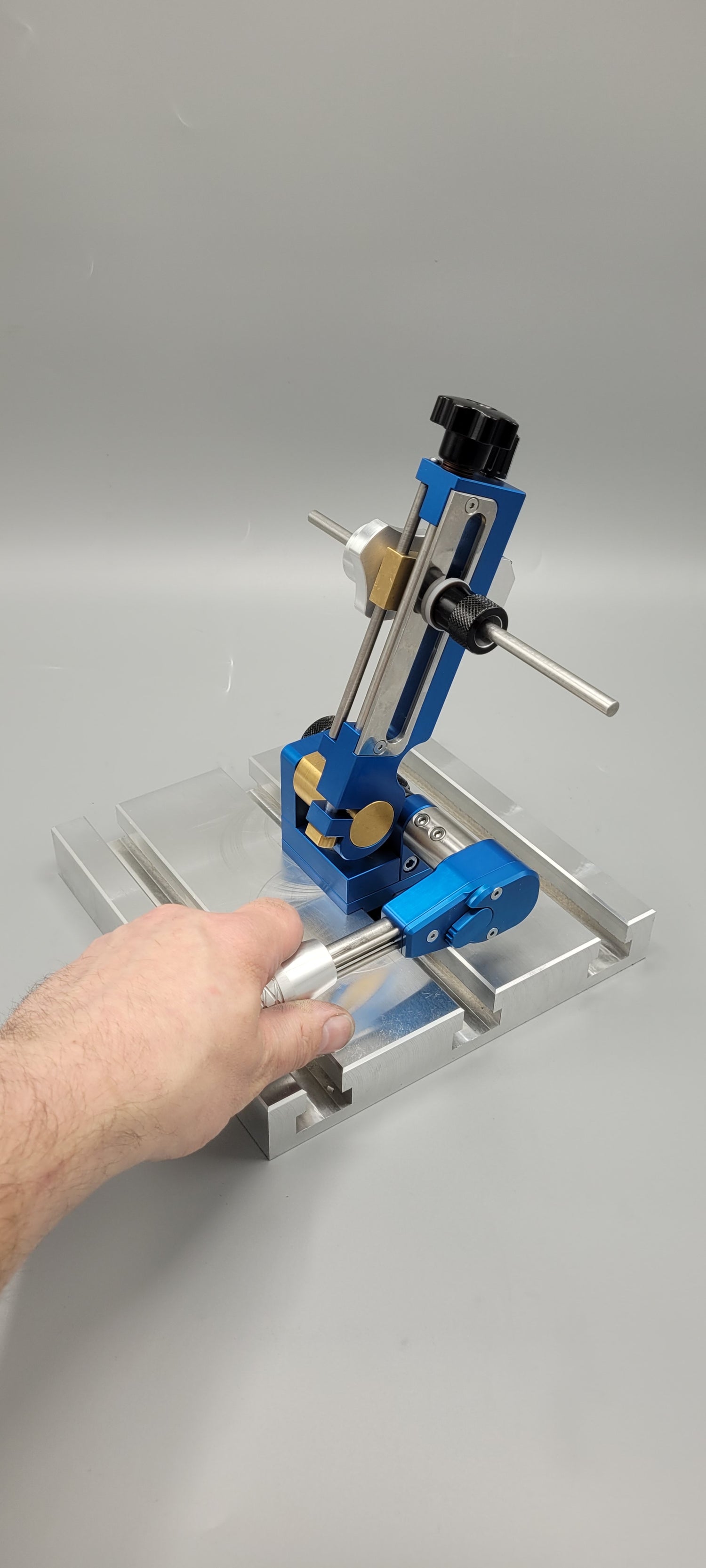

The ULTI-STOP is mounted to the machine bed using an integrated ratchet lever. When actuated, the lever engages the internal clamping mechanism, driving the T-nut securely into the machine’s T-slot. This creates a rigid and repeatable connection between the ULTI-STOP and the machine bed, ensuring stability during operation without the need for additional tools or hardware.
The ULTI-STOP is mounted to the machine bed using an integrated ratchet lever. When actuated, the lever engages the internal clamping mechanism, driving the T-nut securely into the machine’s T-slot. This creates a rigid and repeatable connection between the ULTI-STOP and the machine bed, ensuring stability during operation without the need for additional tools or hardware.

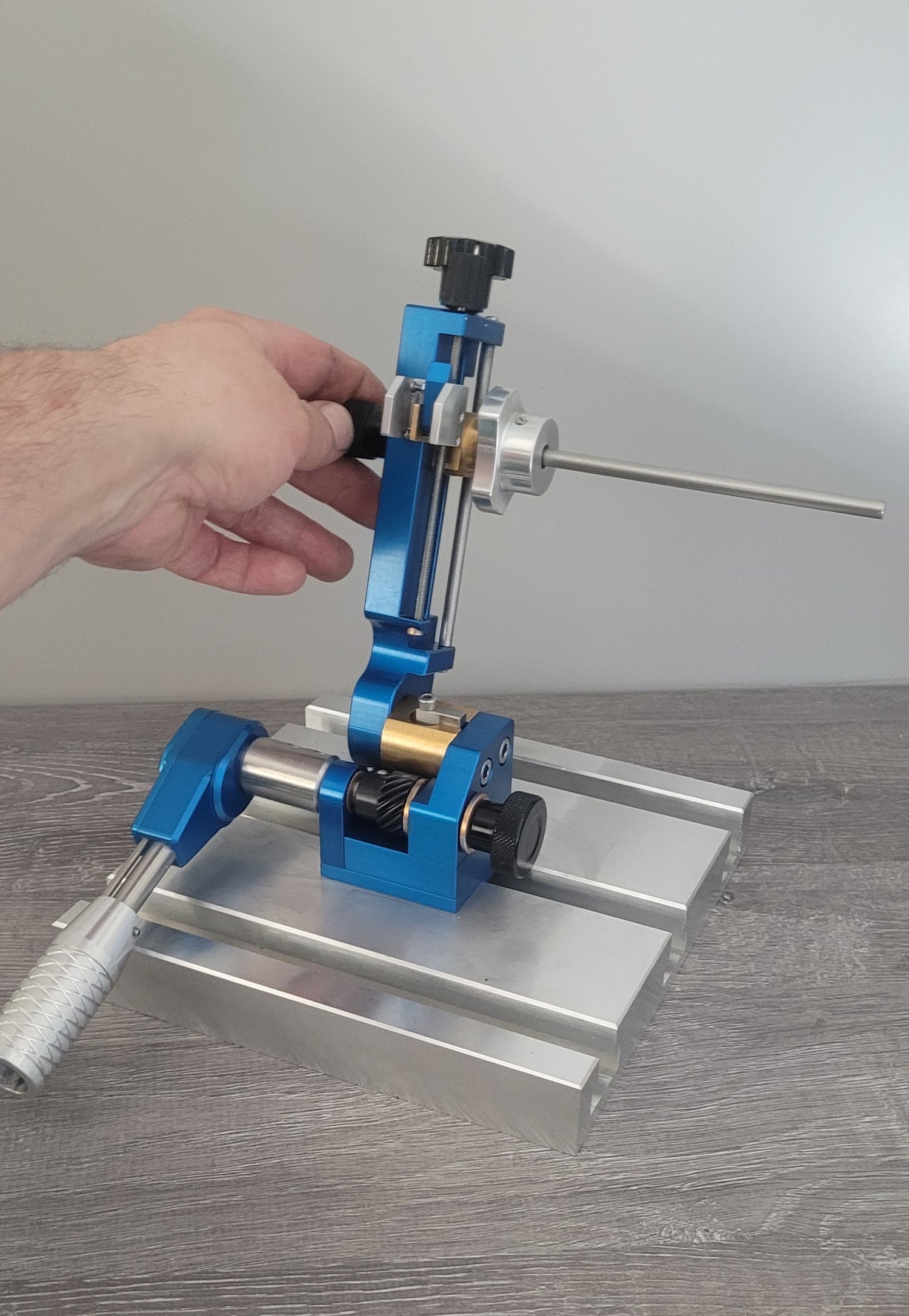

The carriage assembly, which houses the end-stop rod, can be repositioned along the main arm by adjusting the rear-mounted thumb screw.
The thumb screw disengages the locking mechanism, allowing the carriage to slide freely along the main arm. The thumb screw secures the carriage at the desired location, providing a rigid and repeatable setup.This tool-free mechanism enables fast and accurate positioning of the end-stop for a wide range of setups and machining operations.

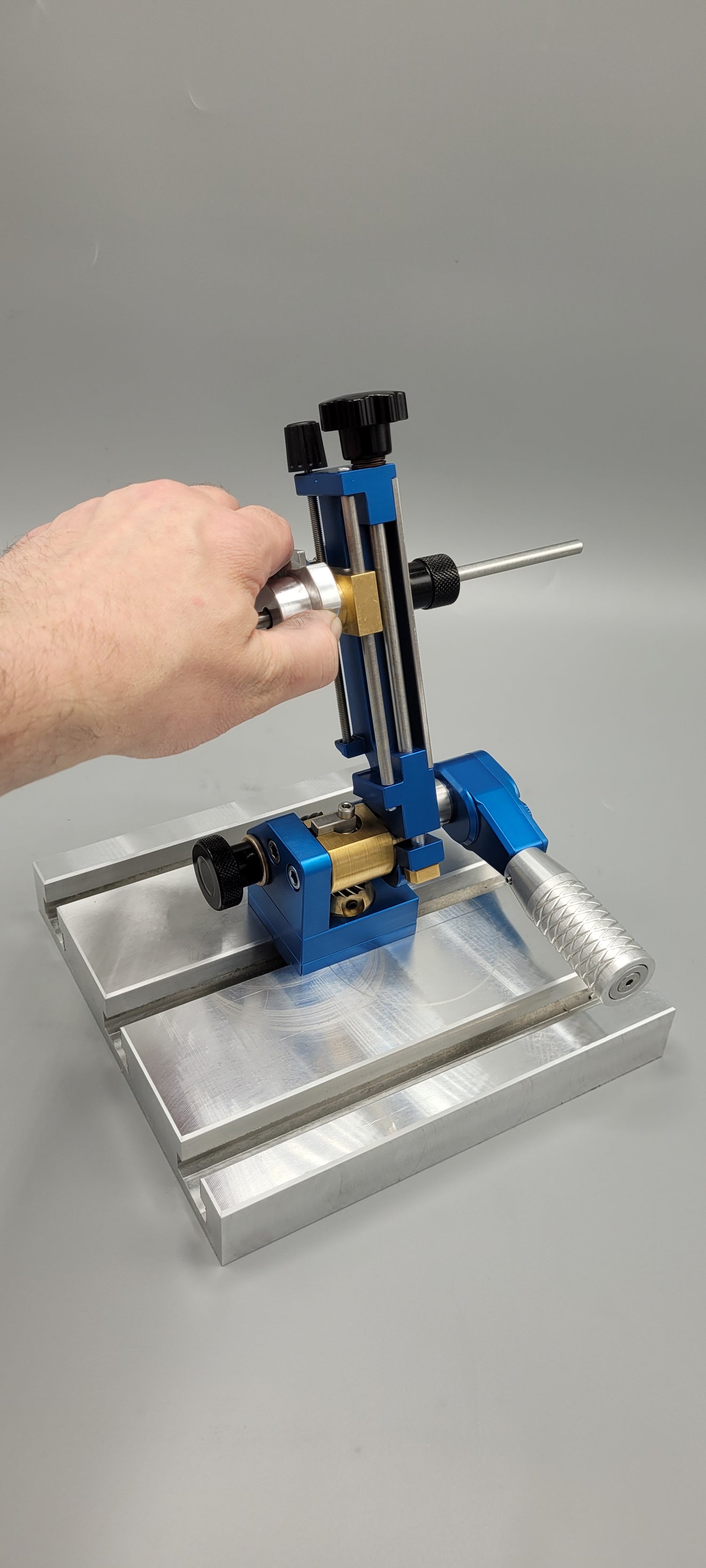

Adjusting the end-stop rod on the ULTI-STOP is fast, smooth, and incredibly intuitive. Simply loosen the ergonomic 3-edge star knob to allow the rod to slide freely along its axis—backward or forward—depending on your setup needs.
Once the rod is in the perfect position to make precise contact with your workpiece, a quick turn of the star knob securely locks it in place. This tool-free mechanism ensures accurate, repeatable setups every time—without the need for spanners, Allen keys, or guesswork.
Whether you're dialling in fine tolerances or repositioning on the fly, this clever design gives you complete control with minimal effort.
