ULTI-STOP Technical
| Feature | Specification |
|---|---|
| Product Name | ULTI-STOP Precision Vise Component Stop |
| Primary Materials | Anodised Aluminium Alloy, Brass, Stainless Steel |
| Construction Method | CNC Precision Machined Components |
| Finish | Black Anodised Aluminium (corrosion-resistant) |
| Tool Operation | 100% Tool-Free – Controlled via Hand Wheels, Knobs & Levers |
| Main Arm Rotation | 180° Swing Capability |
| Locking Mechanism | Star Knob with Internal Mechanical Brake |
| Carriage Adjustment | Thumb Screw Release with Manual Slide |
| End-Stop Rod Adjustment | Linear Travel via Hand Wheel |
| Fine Adjustment Feature | Yes – Micrometric-style fine positioning built into main arm |
| Mounting Method | Ratchet Lever with Internal T-Nut Clamping System |
| Mounting Compatibility |
Standard T-Slot Machine Beds (check slot width in mm) standard supplied is 16mm If you require a different size please Email us which size you require when an order is placed. |
| End-Stop Rod Travel | Approx. 100 mm (depending on model) |
| Unit Weight | Approx. 1.45 kg (depending on configuration) |
| Country of Origin | United Kingdom |
| Recommended Use | CNC Machining, Milling, Repeatable Workholding |
| Packaging | Protective foam-lined case or box (optional custom kit) |

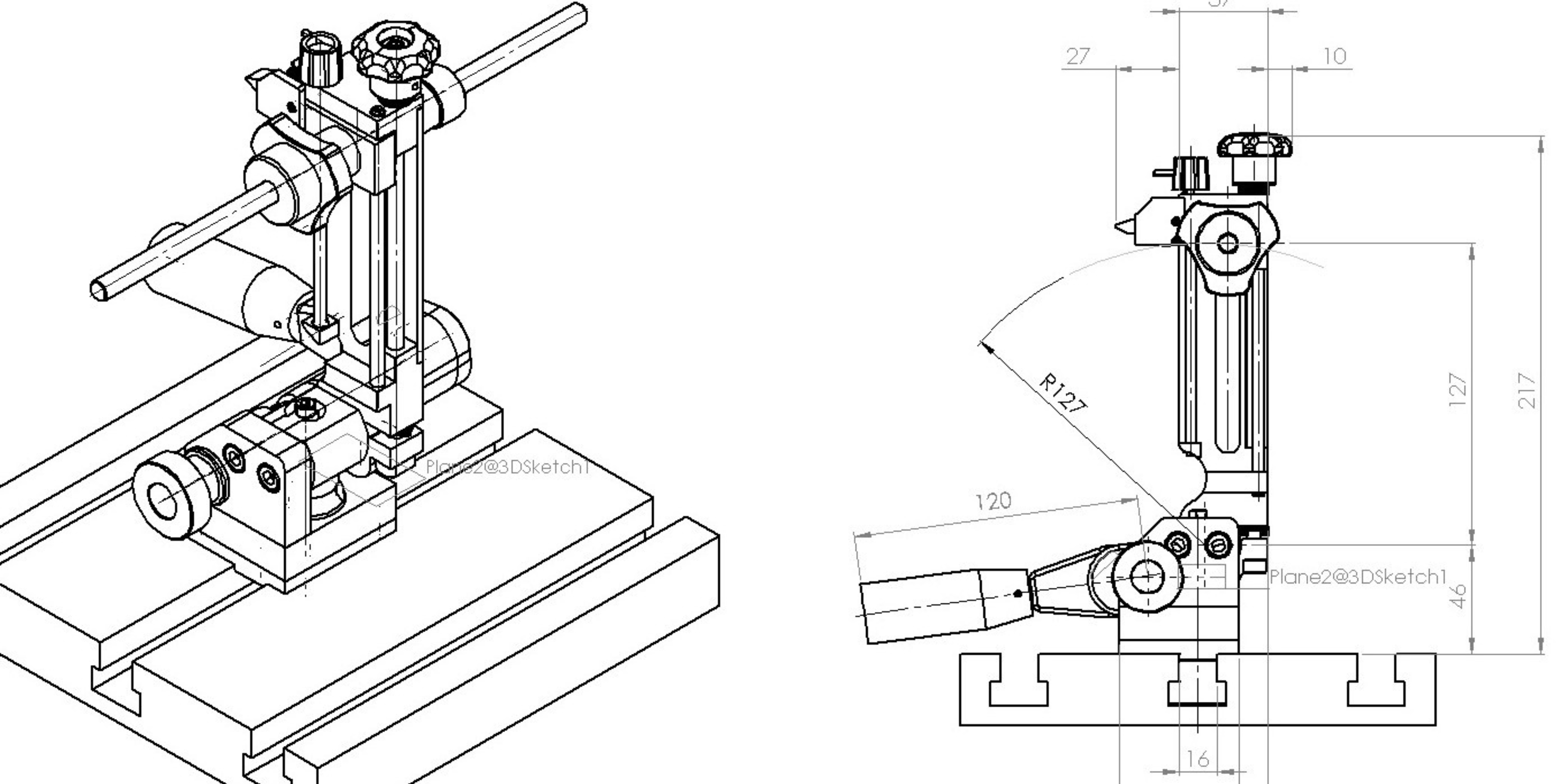

ULTI-STOP Manoeuvres and dimensions
Versatile

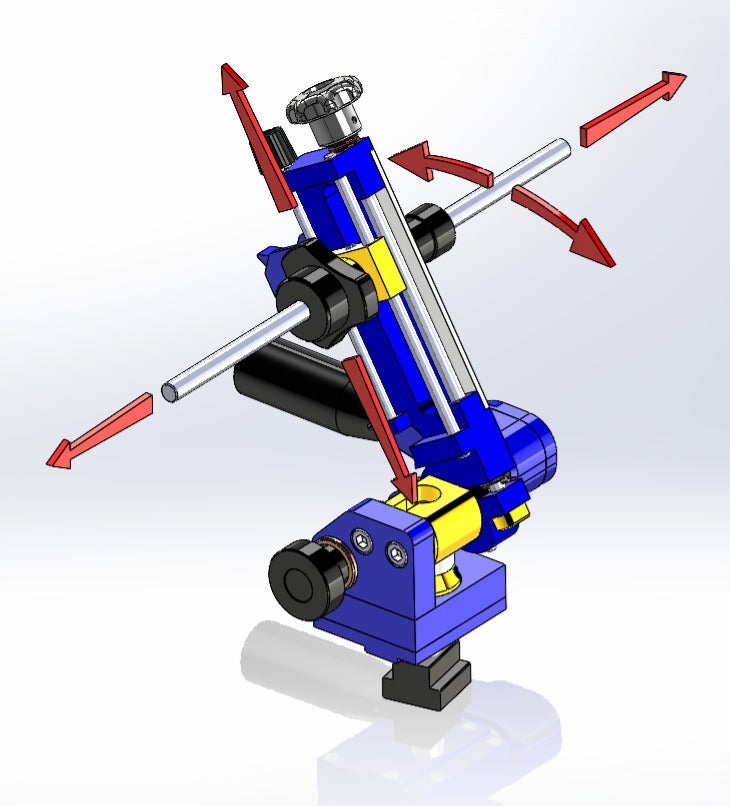

Orientations can be fixed anywhere over these 3 primary axes

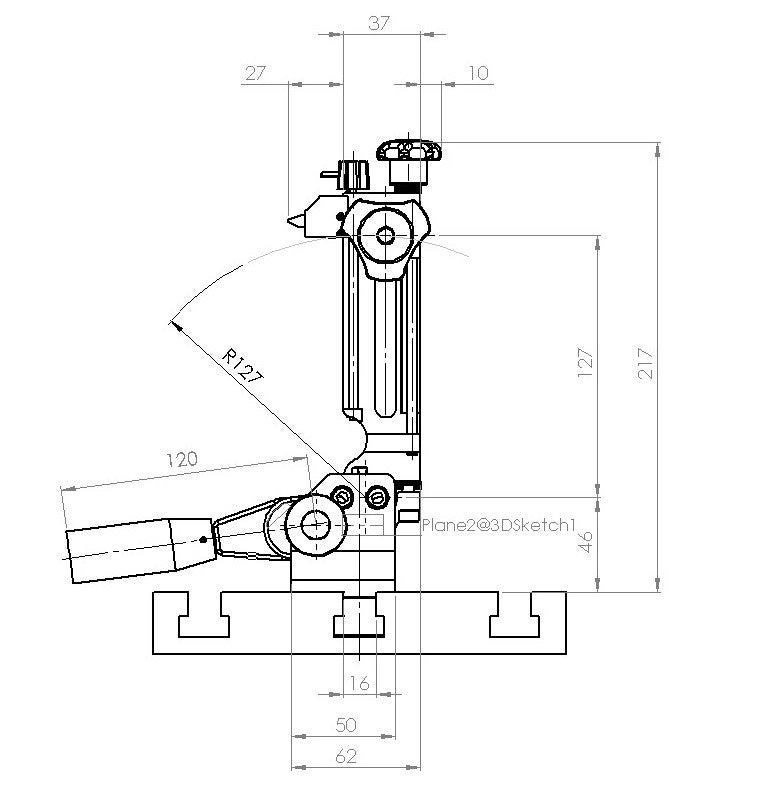

Dimensions in mm
